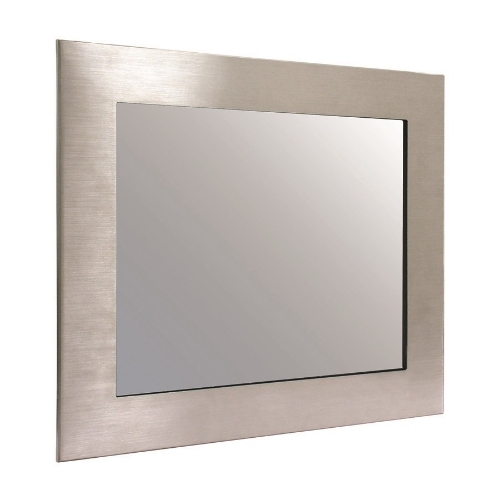

PPC-SP7627 17" Industrial Touch Panel PC

  • 17" 1280x1024 350nits TFT LCD with Resistive Touch Screen
  • Support 3rd Gen Intel® Core™ i5/i3/Pentium® Processor
  • Intel® Q77 Chipset
  • 320GB 2.5" 5.4K RPM SATA Hard Drive
  • 4GB DDR3 1600MHz Memory
  • Optional 2x PCI Expansion Slot
  • Stainless Steel IP65 Compliant Front Bezel
Status: 4 to 8 Weeks Lead-Time
$1,375.00

PPC-SP7627 is a heavy duty and high performance industrial panel PC which supports stainless steel IP65 front bezel protection, Intel® Core i5/i3/Pentium® processor, 17" 1280x1024 350nits high brightness LED backlight resistive touch screen, two gigabit Ethernet ports, four USB3.0, and four COM ports. It also supports two PCI expansion slots. PPC-SP7627 is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk, transportation and building automation systems.

PPC-SP7627 is a heavy duty and high performance industrial panel PC which supports stainless steel IP65 front bezel protection, Intel® Core i5/i3/Pentium® processor, 17" 1280x1024 350nits high brightness LED backlight resistive touch screen, two gigabit Ethernet ports, four USB3.0, and four COM ports. It also supports two PCI expansion slots. PPC-SP7627 is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk, transportation and building automation systems.

Products Specifications
Attribute nameAttribute value
LCD Size17"
Max Resolution1280 x 1024
Brightness350nits
Touch Screen5-Wire Resistive Type
CPUIntel® 3rd Gen Core™ i
ChipsetIntel® Q77
Memory4GB DDR3
Max Memory16GB DDR3
RS232 COM Port3x RS232 (DB9)
RS232/422/485 COM Port1x RS232/422/485 (DB9)
USB 3.0 Port4x USB 3.0
Gigabit LAN Port2x Gigabit LAN Port (RJ-45)
Expansion2x PCI Slot (Optional)
Hard Drive Bay2x 2.5" SATA Hard Drive Bay
Watchdog Timer255 Levels, 1~255 Sec
Construction MaterialStainless Steel Type 304 Front Bezel
MountingVESA 75mm x 75mm and 100mm x 100mm
Front Panel ColorSliver
Dimension (WxHxD)17.80" x 14.41" x 3.67" / 452mm x 366mm x 93.3mm
Weight19.84 lbs / 9 Kg
Operating Temperature32°F ~ 122°F (0°C~50°C)
Storage Temperature-4°F ~ 140°F (-20°C~60°C)
Humidity20% ~ 90% @ 40°C (Non-Condensing)
IP LevelIP65 Compliant Front Panel
Safety & EMCCE/FCC
Power Supply220W AC Power Supply Input: 90V~264VAC, 50/60Hz
