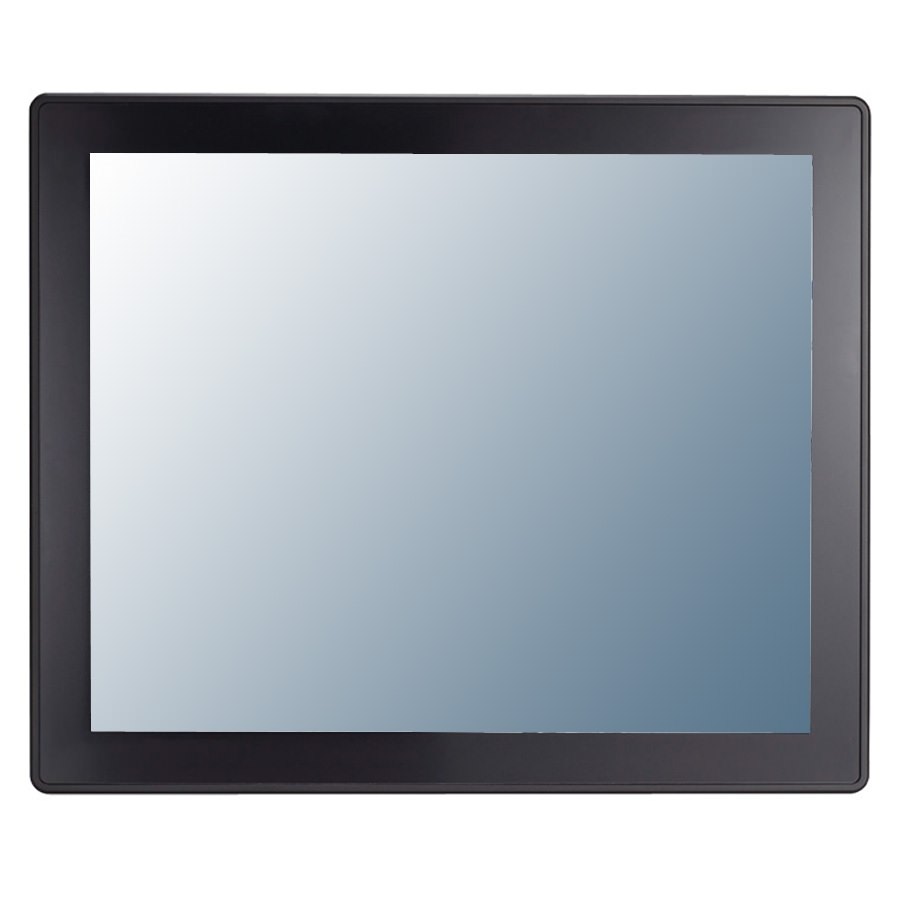

GOT3177T-834 17” IP65 Fanless Touch Panel PC with Intel Celeron J1900 2.0GHz Quad Core Processor

GOT3177T-834 is a modulized design and powerful panel PC which supports IP65 front bezel, Intel® Celeron® J1900 2.0GHz quad core processor, 17" 1280x1024 350nits resistive touch screen, two gigabit Ethernet ports, two USB3.0 ports, two USB2.0 ports and two COM ports. It also supports Microsoft Windows 7 and Windows 8 operating systems. GOT3177T-834 is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk, transportation and building automation systems.

Products Specifications

Attribute name	Attribute value
LCD Size	17"
Max Resolution	1280 x 1024
Brightness	350nits
Touch Screen	Flat Resistive Touch Screen
CPU	Intel® Celeron® J1900 2.0GHz Quad Core Processor
Memory	2GB DDR3L SO-DIMM
Max Memory	8GB DDR3L SO-DIMM
RS232/422/485 COM Port	2x RS232/422/485 (DB9)
USB 3.0 Port	2x USB 3.0
USB 2.0 Port	2x USB 2.0
Gigabit LAN Port	2x Gigabit LAN Port (RJ-45)
Expansion	2 x PCIe Mini Card
Hard Drive Bay	1x 2.5" SATA 6Gb/s Hard Drive Bay
SSD	CFast™ or mSATA
Watchdog Timer	255 Levels, 0~255 Sec
Mounting	Panel, Wall, Stand and Arm VESA 100mm x 100mm
Dimension (WxHxD)	15.64" x 13.01" x 2.36" / 398.02mm x 330.44mm x 59.9mm
Weight	10.6 lbs / 4.8 Kg
Operating Temperature	14°F ~ 122°F (-10°C~50°C)
Storage Temperature	-4°F ~ 140°F (-20°C~60°C)
Humidity	20% ~ 90% @ 40°C (Non-Condensing)
IP Level	IP65 Compliant Front Panel
Safety & EMC	CE
Power Input	DC Version: 9~36VDC with Over-Current Protection Fuse, AC Version: 100-240V AC-DC 60W Power Adapter

GOT3177T-834 17" Fanless Touch Panel PC
