eBOX626-842-FL Fanless Embedded PC

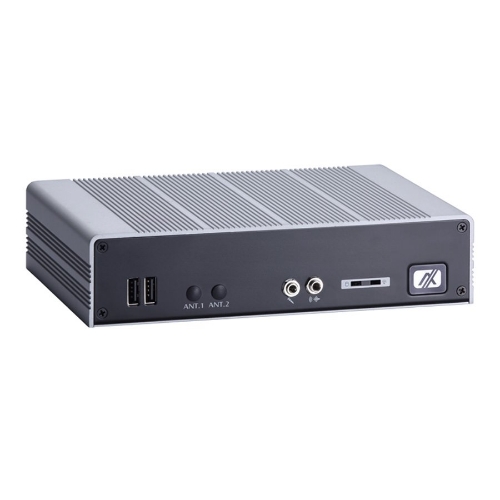

eBOX626-842-FL Fanless Embedded PC Front eBOX626-842-FL Fanless Embedded PC Back
  • Intel® Celeron® J1900 2.0GHz Quad Core Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory
  • 320GB 2.5" 5400RPM SATA 6.0Gbit/s Hard Drive
  • 4x USB2.0 Port
  • 1x RS-232 and 2x RS-232/422/485 Port
  • 2x Gigabit Ethernet Port
  • 10~34VDC Power Input
Status: 4 to 8 Weeks Lead-Time
Product tags
$529.00

eBOX626-842-FL is a high performance industrial fanless embedded PC which supports Intel Celeron J1900 2.0GHz quad core processor. It supports maximum 8GB DDR3L SO-DIMM memory, one RS-232 and two RS-232/422/485 ports, four USB2.0 ports, two Gigabit Ethernet LAN ports, two PCIe Mini slot. eBOX626-842-FL is suitable for a wide range of industrial applications in the market, such as digital signage, transportation, kiosk, industrial control automation, smart industrial IoT getway, medical equipment and much more.

eBOX626-842-FL is a high performance industrial fanless embedded PC which supports Intel Celeron J1900 2.0GHz quad core processor. It supports maximum 8GB DDR3L SO-DIMM memory, one RS-232 and two RS-232/422/485 ports, four USB2.0 ports, two Gigabit Ethernet LAN ports, two PCIe Mini slot. eBOX626-842-FL is suitable for a wide range of industrial applications in the market, such as digital signage, transportation, kiosk, industrial control automation, smart industrial IoT getway, medical equipment and much more.

Products Specifications
Attribute nameAttribute value
Chassis ColorSilver Black
Dimensions (WxDxH)7.87" x 4.72" x 1.81" / 200mm x 120mm x 46mm
Chassis System FanFanless
Chassis ConstructionAluminum Extrusion and Heavy-Duty Steel, IP40
ChipsetSoC
Memory2GB DDR3L SO-DIMM
Max Memory8GB DDR3L SO-DIMM
Hard Drive1x 2.5" SATA 6Gb/s Hard Drive Bay
mSATA1 x mSATA (SATA 6Gb/s)
USB 2.0 Port4x USB2.0
Gigabit LAN Port2x Gigabit LAN Port (RJ-45)
RS232/422/485 COM Port2x RS232/422/485 (DB9)
RS232 COM Port1x RS232 (DB9)
Antenna Hole3x SMA Type Connector Opening for Antenna
Display1x HDMI and 1x VGA
Audio1x Line-Out, 1x Mic-In
WirelessIEEE802.11 a/b/g/n/ac + Bluetooth 4.0 LE (Optional)
Expansions1x Full-Size PCIe Mini Slot and 1x Half-Size PCIe Mini Slot
Watchdog Timer1~255 sec. Software Programmable
Power Input10~34VDC Power Input
Operating Temperature-4°F ~ +131°F (-20°C ~ +55°C) (with Wide Temperature HDD & DRAM)
Operating Vibration3 Grms with SSD(5-500 Hz, X, Y, Z Directions)
Weight (Net/Gross)2.43 lbs / 3.97 lbs (1.1 Kg / 1.8 Kg)
Safety/EMCCE
Supported OSMicrosoft® Windows® 8 Embedded, Microsoft® Windows® Embedded Standard 7 E
