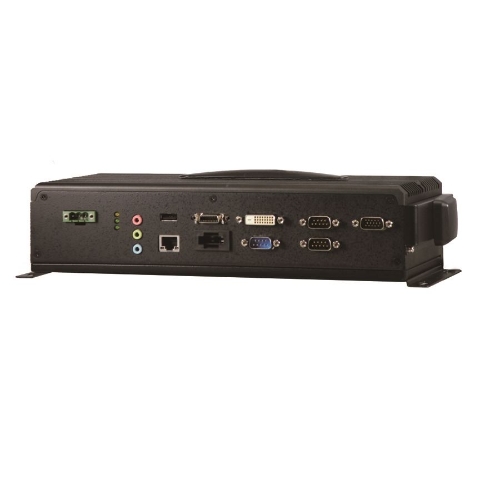

AR-V6005FL In-Vehicle Fanless Embedded PC with Intel Atom E640 Processor

The AR-V6005FL is a rugged in-vehicle fanless embedded PC which supports Intel Atom E640 processor. It has 2GB DDR2 on-board memory, two RS-232 and one RS-232/422/485 ports, two USB2.0 ports, one Intel Gigabit Ethernet LAN port. The AR-V6005FL is suitable for a wide range of in-vehicle applications in the market, such as taxi, police car, ambulance, fire fighter trunk, heavy duty truck, bus, construction vehicle and train.

Products Specifications

Attribute name	Attribute value
Dimensions (WxDxH)	11.57" x 5.04" x 2.68" / 294mm x 128mm x 68mm
Chassis System Fan	Fanless
Chassis Construction	Metal SPGC
CPU	Intel® Atom™ E640
Chipset	Intel ® EG20T
Memory	Built-in 2GB DDR2 Memory
Max Memory	2GB DDR2
Hard Drive	1x 2.5" SATA 3Gb/s Hard Drive Bay
CF	1x CF Type I/II Slot
USB 2.0 Port	2x USB2.0
Gigabit LAN Port	1x Gigabit LAN Port (RJ-45)
RS232 COM Port	2x RS232 (DB9)
RS232/422/485 COM Port	1x RS232/422/485 (DB9)
Digital I/O	8-bit Digital I/O, 4-bit Input/4-bit Output
CAN-bus	Support CAN 2.0A/2.0B Protocol
Display	1x DVI, 1x VGA
Audio	1x Line-Out, 1x Mic-In
Wireless	802.11a/b/g/n (Optional)
Expansions	2x PCIe Mini Slot (For Optional 3.5G / WiFi Module)
Watchdog Timer	1~255 sec. Software Programmable
Power Input	9~32VDC Power Input
Power Consumption	Max 19W
Mounting	Wall Mount
Operating Temperature	32°F ~140°F (0°C ~ 60°C)
Operating Shock	IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD
Operating Vibration	IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD
Weight (Net/Gross)	5.29 lbs / 10.50 lbs
Safety/EMC	CE, FCC Class B, E-Mark
Supported OS	Fedora 14, Ubuntu 10

AR-V6005FL In-Vehicle Embedded PC
